Comprehensive Engineering Services
Delivering Excellence Across Every Phase of Your Project Lifecycle:
At YTC, our service commitment extends far beyond equipment manufacturing. Supported by a team of over 45 senior chemical and mechanical engineers, we deliver end-to-end, full-lifecycle technical support—ensuring seamless execution, peak operational efficiency, and long-term peace of mind for your investment.
01. Pre-Sales: Custom engineering and ROI analysis to deliver optimized, energy-saving CO2 recovery designs.
02. In-Sales: Full turnkey delivery, including precision manufacturing, onsite commissioning, and hands-on training.
03. After-Sales: 24/7 technical support, remote diagnostics, and reliable spare parts to ensure maximum uptime.
04. Our Advantage: 20+ years of CCUS expertise offering complete EPC capability and resource-efficient solutions.
The CO2 product index recovered by YTC company achieve below specification:
| CO2 | Up to 99.998% Purity | % v/v |
|---|---|---|
| O2 | max. 5 | ppm v/v |
| N2 + Ar + He | max. 10 | ppm v/v |
| H2S | max. 0.1 | ppm v/v |
| DMS | max. 0.1 | ppb v/v |
| Ethanol | max. 1 | ppm v/v |
| Other alcohols | max. 1 | ppm v/v |
| Acetates | max. 0.1 | ppm v/v |
| Acetaldehyde | max. 0.2 | ppm v/v |
| Other volatile oxygenates | max. 1 | ppm v/v |
| H2O | max. 10 | ppm v/v (dew point -60° C) |
| Taste and odour | odorless |
Quality grade of finished liquid CO2 Meet below standard:
national standards of the People's Republic of China "HG/T2537-93" industrial liquid carbon dioxide welding standard
The People's Republic of China national standard "GB/T6052-2011" industrial liquid carbon dioxide carbon dioxide standard
National standards of the People's Republic of China the food additives, liquid carbon dioxide GB10621-2006 standard
GB10621-2006 "Food Additive liquid carbon dioxide" main quality indicators
The People's Republic of China national standard "GB / 1886.228 2016" food additive liquid carbon dioxide standard
GB/1886.228-2016 "Food Additives liquid carbon dioxide" main quality indicators
The People's Republic of China national standard "GB/T23938-2009" standard high purity carbon dioxide
GB/T 23938-2009 "High purity carbon dioxide" main quality indicators
Coca-Cola enterprise carbon dioxide standard
Pepsi enterprise carbon dioxide standard (table: 2.2 5)

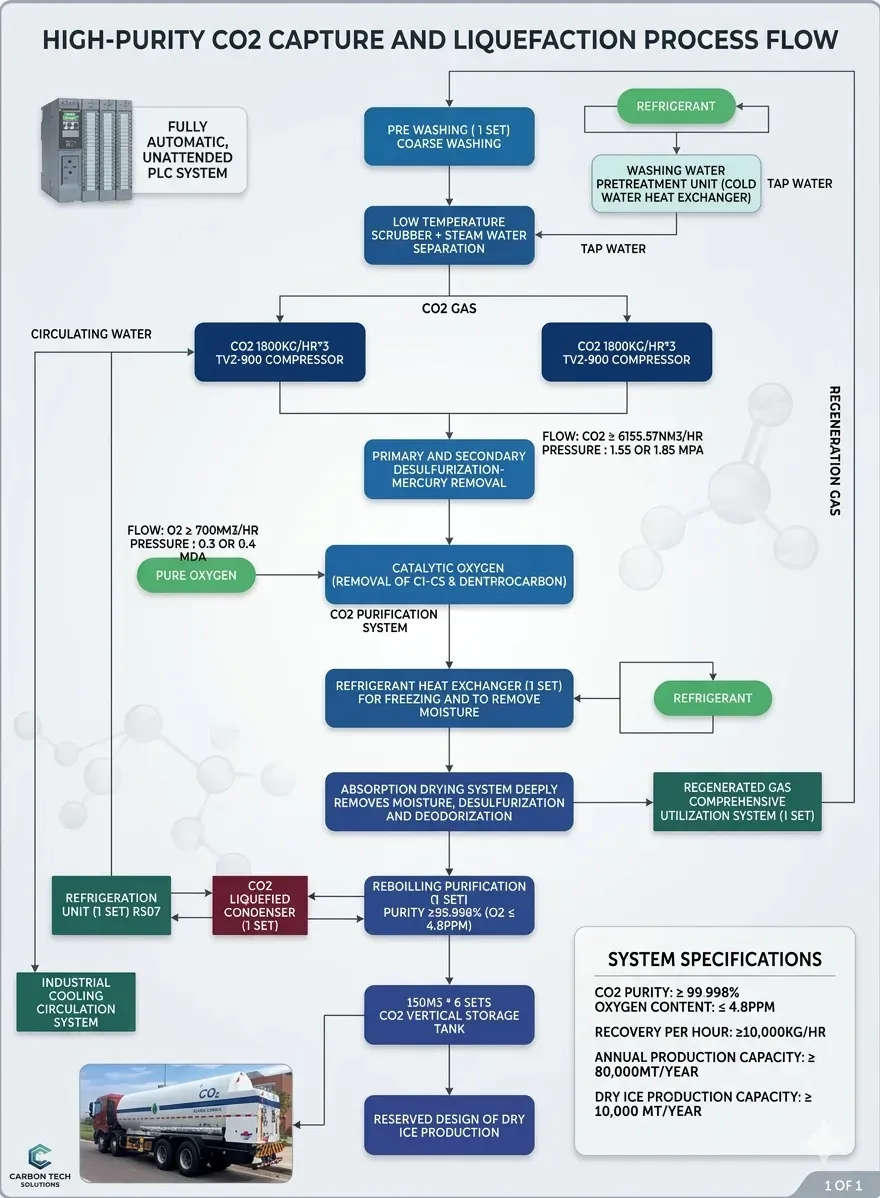

Process Flow Diagram
1.
Pre-Washing & Gas Pretreatment – Raw gas first enters the PRE WASHING (1 SET) COARSE WASHING unit, followed by a LOW TEMPERATURE SCRUBBER + STEAM WATER SEPARATION system (cooled via the WASHING WATER PRETREATMENT UNIT) to cool the incoming gas and remove initial foam, steam, and coarse particles.
2.
Dual-Stage Gas Compression – The pre-treated CO2 gas is channelled into high-capacity parallel compressors—CO2 COMPRESSOR—boosting the process gas flow at 1.55 or 1.85MPa for downstream purification.
3.
Primary & Secondary Desulfurization – The pressurized gas passes through the PRIMARY AND SECONDARY DESULFURIZATION-MERCURY REMOVAL unit to thoroughly eliminate sulfur compounds, heavy metals, and trace mercury.
4.
Catalytic Purification & Deoxygenation – Inside the specialized CO2 PURIFICATION SYSTEM, gas undergoes CATALYTIC OXYGEN (REMOVAL OF C1-C5 & DENTROCARBON) treatment using pure oxygen injection ( 0.3 or 0.4MPa to strip organic hydrocarbons and non-condensable impurities.
5.
Refrigerant Pre-Cooling & Deep Absorption Drying – Gas is cooled down in the REFRIGERANT HEAT EXCHANGER (1 SET) FOR FREEZING AND TO REMOVE MOISTURE, and then enters the ABSORPTION DRYING SYSTEM DEEPLY REMOVES MOISTURE, DESULFURIZATION AND DEODORIZATION bed to achieve ultra-low dew points and complete odor elimination.
6.
Reboiling Purification & Liquefaction – Connected with the REFRIGERATION UNIT (1 SET) RS07 and CO2 LIQUEFIED CONDENSER (1 SET), the gas passes into REBOILLING PURIFICATION (1 SET) to deliver ultra-pure product (PURITY 99.998%, O2 <=4.8 PPM.
7.
Vertical Cryogenic Storage & Extension – The pure liquid product is securely transferred into CO2 VERTICAL STORAGE TANK units, which seamlessly integrate with a RESERVED DESIGN OF DRY ICE PRODUCTION system and cryogenic road tankers for logistics distribution.
One Stop CO2 RECOVERY SYSTEM Solution For Your Project
YTC company owned over 100+ staffs, including experts, senior engineers, and advanced technologists. This diverse team with innovative thinking can provide you with comprehensive project solutions all in one place.
